Repeater stations installed on high altitudes allow clear communication at great distances, what is not always possible with portable or mobiles radio transceivers in simplex operation.

Developed specially for private and commercial communications where high availability is needed at low cost. Works as repeater, link and cross repeater.

Built only with high quality components to assure a reliable operation. The PCB layout was carefully designed to avoid common noises often found in microcontrolled circuits resulting in a crystal clear audio.

The Orion 200 software was carefully designed to garantee an error free operation.

The features available in this particular controller board are designed to attend basic needs of a commercial repeater station.


Easy Installation

With an extremely easy installation allowing even a non experienced person do do it. It's only necessary six connections: Audio and COR (Carried Operated Relay) from receiver, audio and PTT from transmitter and a 12V power source.

3 Operation Modes

Repeater: Each signal that reaches the receiver is transmitted by the repeater transmitter

Repeater with link: You only need an extra transceiver to link remote stations

Cross Repeater: Adding an extra transceiver will allow you to operate in cross mode, where signals comming through the main receiver will be transmitted by the extra transceiver and vice-versa.

Technical Characteristics

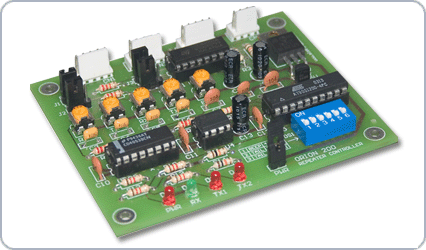

Complete repeater interface in a single board
Courtesy Tone
Programmable hang time (0s, 0.5s, 1s e 1.5s)
Three operation modes: Repeater, repeater with link and cross repeater
Alarm input to monitor power failure
Smart fan output
Positive and negative COR
3 minutes timeout for repeater transmitter
Plain audio renponse
Independent TX and RX audio amplifiers with independent level adjustment
LEDs to indicate repeater operation
Placa de circuito impresso em fibra de vidro de alta qualidade
Todos os circuitos integrados com soquetes para facil manutenção
Interchangeable cables
Installation manual with schematics
Power source: 8V ~ 15V DC 10 mA in stand by
Dimensions: 91mm x 75mm x 15mm
One year warranty

COMPARE ALL CONTROLLERS

Documentation

Installation and Operation Manual (274KB)
